ALFA ROMEO 90 (162_) 1.8 (162.A1A)

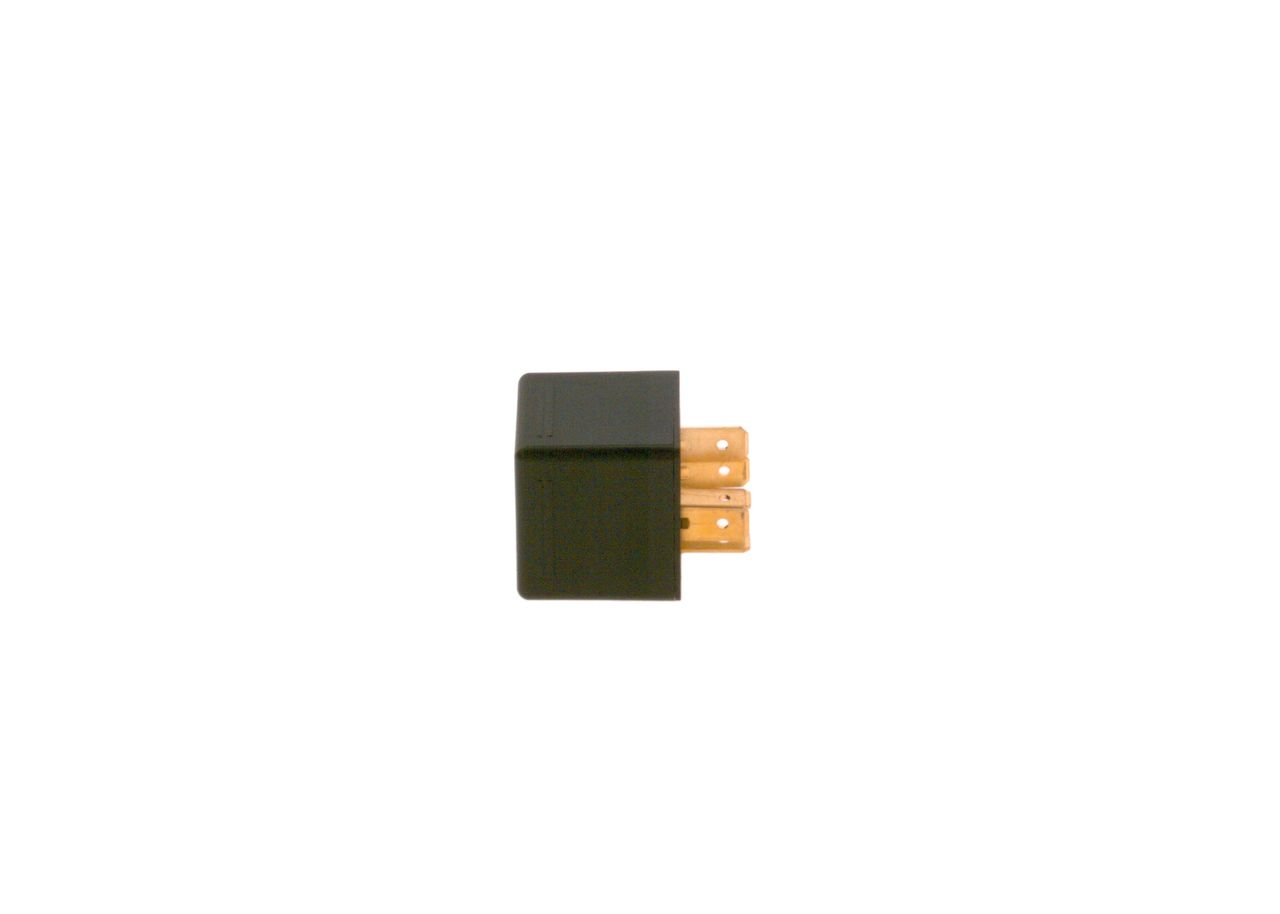

BOSCH 0 986 AH0 251 Relay, main current

Normally open contact , 30 a, 12 v

Article Number: 0 986 AH0 251

Relay, main current-main
BOSCH
Relay, main current-0
Relay, main current-1
Relay, main current-2
Relay, main current-3
Relay, main current-4
Relay, main current-5
Relay, main current 360

In stock: >10 pcs

£2.85

Includes VAT

Delivery cost not included

Dispatch time: 1-2 business days

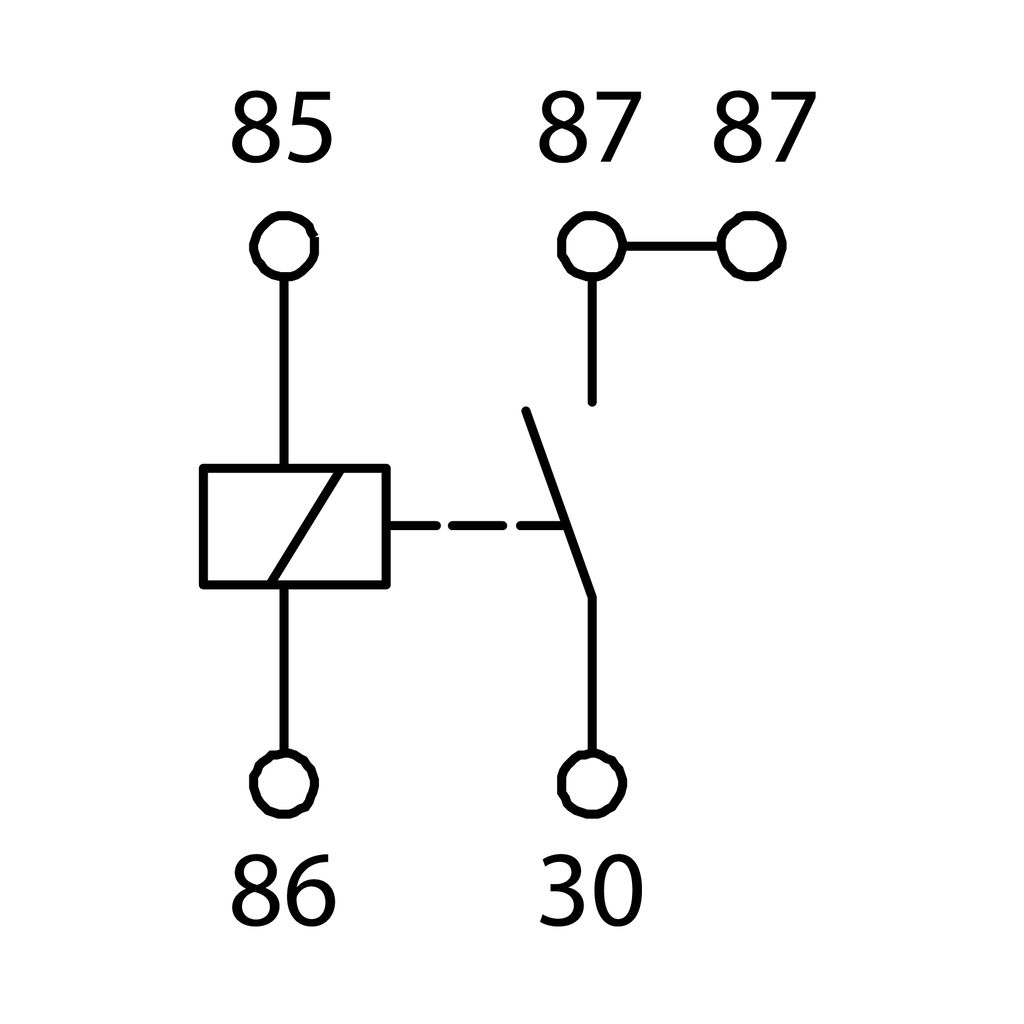

Switch Function

Normally Open Contact

Current Strength (A)

30

Voltage (V)

12

Number of pins

5

Relay function

Normally open contact

Temperature range from (°C)

-40

Temperature range to (°C)

85

Supplementary Article/Supplementary Info

without holder

Resistor (ohm)

90

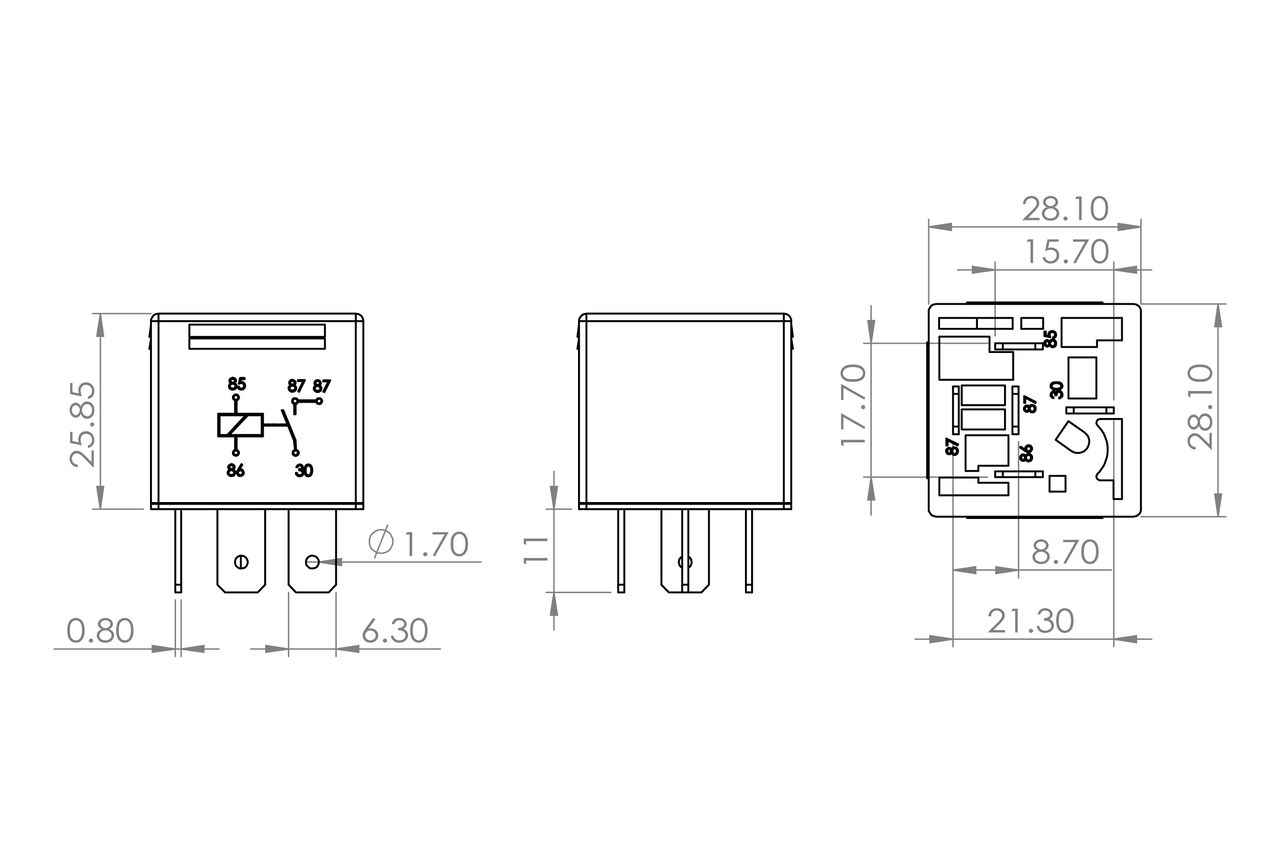

Length (mm)

28

Width (mm)

28

Height (mm)

37

116106513500 - ALFA ROMEO116106513507 - ALFA ROMEO116965135000 - ALFA ROMEO4339372 - ALFA ROMEO533702 - ALFA ROMEO605012000 - ALFA ROMEO605070600 - ALFA ROMEO7612321 - ALFA ROMEO1H0959142 - AUDI141 951 253 B - AUDI171 919 505 A - AUDI311 906 061 C - AUDI431 951 253 H - AUDI01243207 - BMW1 243 207 - BMW1 373 156 - BMW61 31 1 243 207 - BMW61 31 1 373 156 - BMW92 526 538 - CITROËN92 526 538 80 - CITROËNA0015423219 - DAIMLER4320629 - FIAT4339372 - FIAT6050706 - FIAT60507060 - FIAT60805422 - FIAT60812059 - FIAT7612321 - FIAT76123210 - FIAT7615576 - FIAT7619302 - FIAT3221235R1 - INTERNATIONAL HARV.4320625 - IVECO4320629 - IVECO7615576 - IVECO7686773 - IVECO98452428 - IVECO4320629 - LANCIA4339372 - LANCIA60812059 - LANCIA7612321 - LANCIA7615576 - LANCIA01164015 - MAGIRUS-DEUTZ01172943 - MAGIRUS-DEUTZ116 4015 - MAGIRUS-DEUTZ117 2943 - MAGIRUS-DEUTZ39 90058 0029 - MANA 000 545 80 05 - MERCEDES-BENZA 001 542 32 19 - MERCEDES-BENZA 001 542 43 19 - MERCEDES-BENZA 001 542 55 19 - MERCEDES-BENZA 002 545 19 05 - MERCEDES-BENZ000 545 80 05 - MERCEDES-BENZ001 542 32 19 - MERCEDES-BENZ001 542 43 19 - MERCEDES-BENZ001 542 55 19 - MERCEDES-BENZ002 545 19 05 - MERCEDES-BENZ12 38 604 - OPEL17 76 155 - OPEL34 40 489 - OPEL40 12 053 - OPEL90296182 - OPEL92 526 538 - PEUGEOT92 526 538 80 - PEUGEOT0171937503 - PORSCHE141951253B - PORSCHE171937503 - PORSCHE928 615 117 00 - PORSCHE999 657 009 90 - PORSCHE85 22 310 - SAAB1H0959142 - SEAT141 951 253 B - SEAT171 919 505 A - SEAT1H0959142 - SKODA141 951 253 B - SKODA171 919 505 A - SKODA1235893 - VOLVO1259925 - VOLVO1501832 - VOLVO839367 - VOLVO1H0959142 - VW111 963 141 C - VW141 951 253 A - VW141 951 253 B - VW171 919 505 A - VW171937503 - VW311 906 061 C - VW431 951 253 H - VW39900580029 - STEYR39160 25000 - HYUNDAI95225 3B100 - HYUNDAI0K011 18811 - KIA0K9A0 18811 - KIA82003697 - CASE IH3539 335 M92 - MASSEY FERGUSON0313320134 - FERRARI04 01 30 07 - FERRARI110350 - FERRARI110356 - FERRARI313320134 - FERRARI40 13 00 07 - FERRARID45060021 - FENDTX 830 250 011 000 - FENDT3539335M92 - FENDT3906604M1 - FENDTAZ26996 - JOHN DEERE450222058138721 1 85 227 0 - PUCH48642037F82003697 - NEW HOLLAND
