Alternator Freewheel Clutch lr1180856

Observe service information

Supplementary article/supplementary info 2

Requires special tools for mounting

Number of grooves

6

Width [mm]

35

Distance to first groove [mm]

5

For manufacturer number

F-551623.XX

For manufacturer number

F-551623.XX

Number of grooves

6

Distance to first groove [mm]

5

Width [mm]

35

Diameter 1/diameter 2 [mm]

55,9/17,0

Supplementary article/supplementary info 2

Requires special tools for mounting

Observe service information

Svhc

No SVHC present!

Number of ribs

6

Supplementary article/supplementary info 2

with cover

For oe number

059 903 119 H

Guarantee

3 years guarantee

Distance from belt pulley to alternator [mm]

5

Outer diameter [mm]

61

Fitting depth [mm]

11.3

For manufacturer number

F-551623.XX

Manufacturer restriction

Bosch

Manufacturer restriction

Valeo

Manufacturer restriction

Hitachi

Width [mm]

34.8

Thread size

M16x1,5

Inner diameter [mm]

17

Belt pulley ø [mm]

56

Rotation direction

Clockwise rotation

Supplementary article/supplementary info 2

with cap

Number of grooves

6

Assy./disassy. by qualified personnel required!

New part without deposit

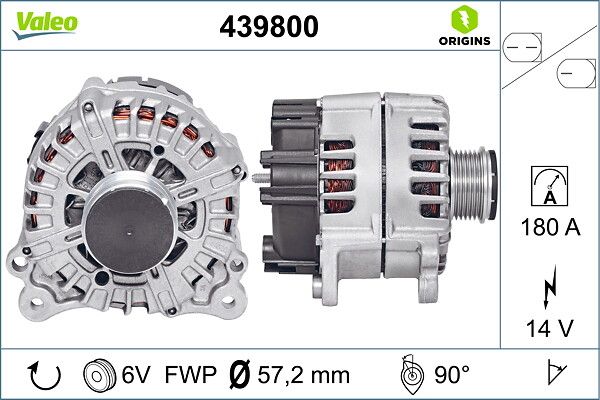

Voltage [v]

14

Alternator charging current [a]

180

Fastening type

Four-point attachment

Position/degree

R 90

Rotation direction

Clockwise rotation

Pulleys

with freewheel belt pulley

Number of ribs

6

Belt pulley ø [mm]

57

Clamp

B+(M8)

Weight [kg]

7.552

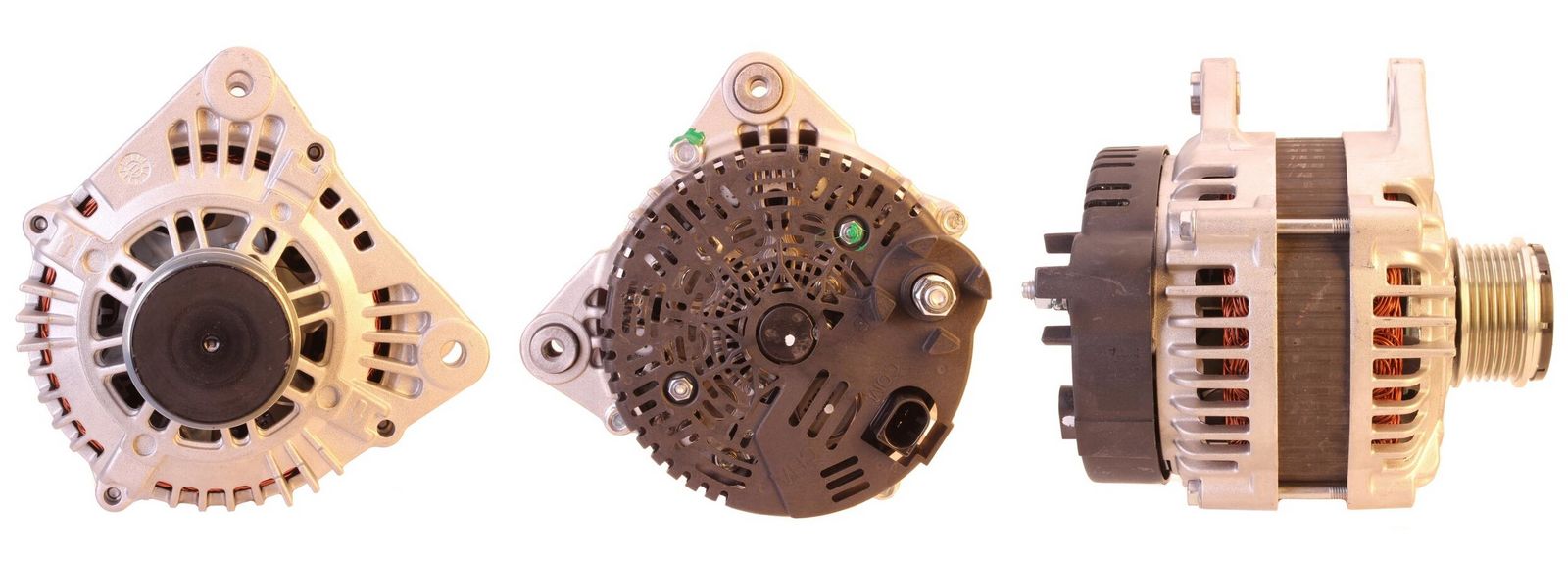

Alternator charging current [a]

180

Vehicle electrical system design

for vehicles with 12-volt electrical system

Voltage [v]

14

Pulleys

with freewheel belt pulley

Belt pulley ø [mm]

56

Number of ribs

6

Clamp

M8 B+

Clamp

LIN 1-D

Plug type id

0282

Bore diameter 1 [mm]

8

Net weight [kg]

7.4

Exchange part

Always compare old and new part (in particular oe no.)

New part without deposit

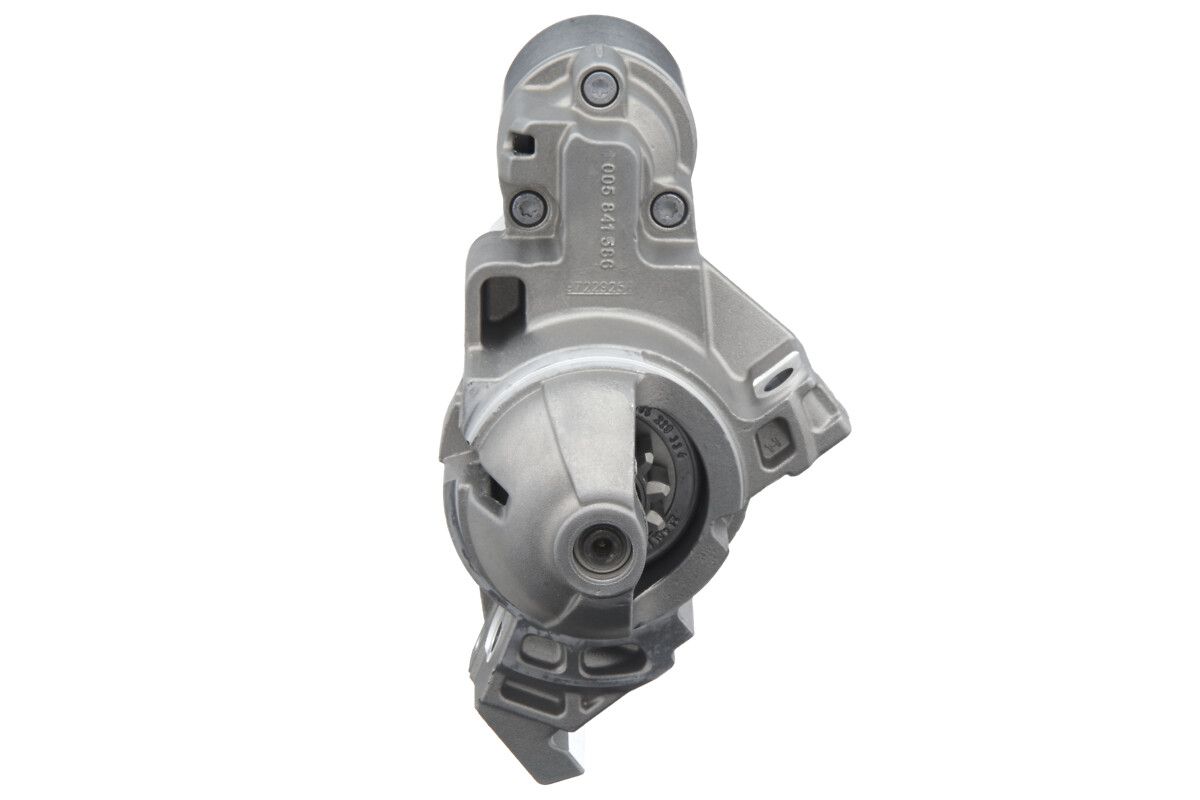

Vehicle equipment

for vehicles with start-stop function

Voltage [v]

12

Rated power [kw]

2.4

Number of teeth

11

Number of holes

3

Rotation direction

Clockwise rotation

Position/degree

69

Flange diameter [mm]

69

Weight [kg]

4.88

Alternator charging current [a]

180

Vehicle electrical system design

for vehicles with 12-volt electrical system

Voltage [v]

14

Pulleys

with freewheel belt pulley

Belt pulley ø [mm]

56

Number of ribs

6

Clamp

M8 B+

Clamp

LIN 1-D

Plug type id

0282

Bore diameter 1 [mm]

8

Net weight [kg]

7.4

Always compare old and new part (in particular oe no.)
